A single phase to 3 phase converter is a critical piece of equipment in various industries, allowing users to operate three-phase machinery in environments where only single-phase electrical service is available. This capability is particularly valuable in rural, residential, or remote locations where upgrading to three-phase power is costly or impractical. This article provides a comprehensive overview of single phase to 3 phase converters, covering their types, installation procedures, and practical use cases across different industries.
What Is a Single Phase to 3 Phase Converter?
A single phase to 3 phase converter is a device that converts single-phase electricity (commonly found in homes and small businesses) into three-phase power (typically used for industrial and heavy machinery). Many machines and tools, especially those found in industrial settings, require three-phase power for efficient operation due to the balanced load and higher efficiency it offers. With a converter, these machines can be powered without needing a costly electrical service upgrade.
Types of Single Phase to 3 Phase Converters
There are three main types of single phase to 3 phase converters, each with its own advantages and applications:
Rotary Phase Converters
Rotary phase converters use an idler motor and a control panel to generate three-phase power. When single-phase power energizes the idler motor, it creates a rotating magnetic field that simulates three-phase power. These converters are known for their durability and ability to power multiple machines at once. They are suitable for continuous and heavy-duty applications.
Static Phase Converters
Static phase converters are a more affordable and simpler alternative. They use capacitors to start a three-phase motor and then drop two of the legs, allowing the motor to run on single-phase power. While not providing true three-phase power during operation, they are suitable for light-duty machines that do not require full torque continuously. Static converters are commonly used for light machinery, pumps, and fans.
Digital Phase Converters

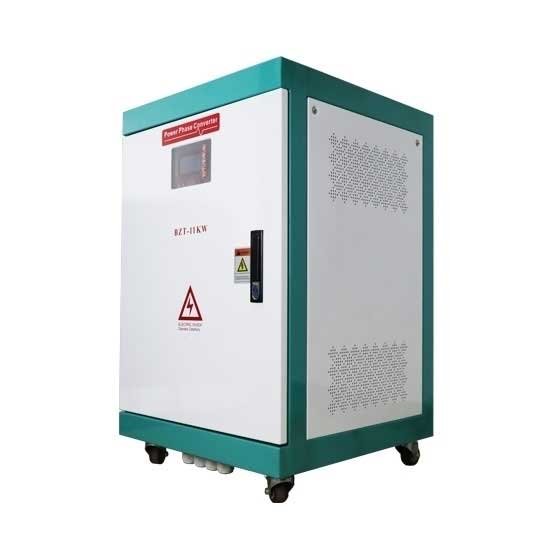

Digital phase converters are the most advanced and versatile. They use digital signal processors and power electronics to create precise three-phase output from single-phase input. These converters offer balanced power across all three legs and are ideal for sensitive or high-performance equipment. Digital converters are efficient, reliable, and support a broad range of voltages and loads.
How to Install a Single Phase to 3 Phase Converter
Installing a single phase to 3 phase converter requires careful planning and execution to ensure safety and optimal performance. While professional installation is recommended, understanding the basic process can help users make informed decisions.
Step 1: Determine Power Requirements
Identify the voltage, amperage, and horsepower ratings of the machinery to be powered. This information will determine the size and type of converter required. Overestimating the load can result in unnecessary costs, while underestimating can lead to inadequate performance or equipment damage. 20 hp is currently a more suitable choice.
Step 2: Choose the Right Converter Type
Based on your application, decide whether a rotary, static, or digital phase converter best suits your needs. Consider factors such as load size, load type (resistive or inductive), budget, and desired efficiency.
Step 3: Plan the Electrical Setup
Evaluate the available space for installation, ensure proper ventilation, and plan wiring routes. It’s crucial to follow local electrical codes and consult with a qualified electrician if necessary.
Step 4: Install the Converter

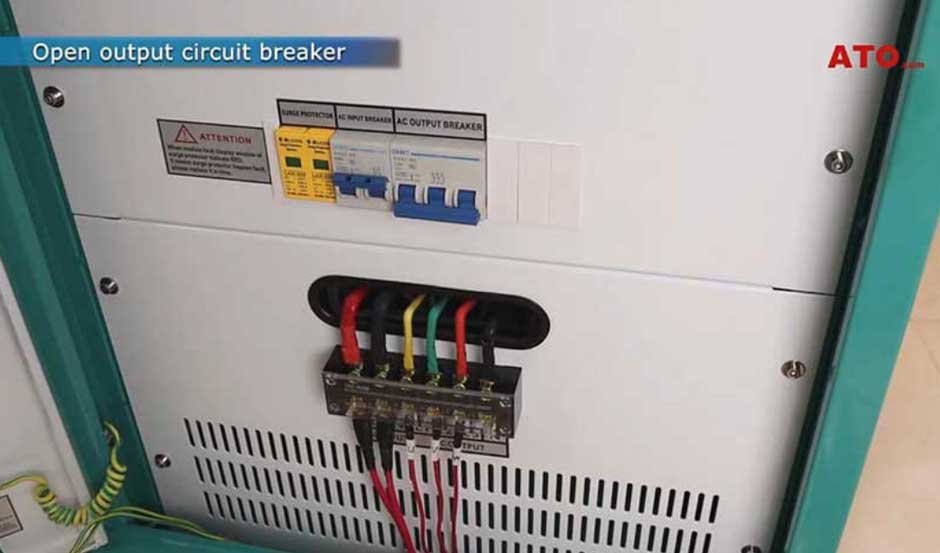

Mount the converter securely in a dry, well-ventilated area. Connect the input terminals to the single-phase power source, and the output terminals to the equipment that requires three-phase power. Ensure all connections are tight and secure.
Step 5: Test the System

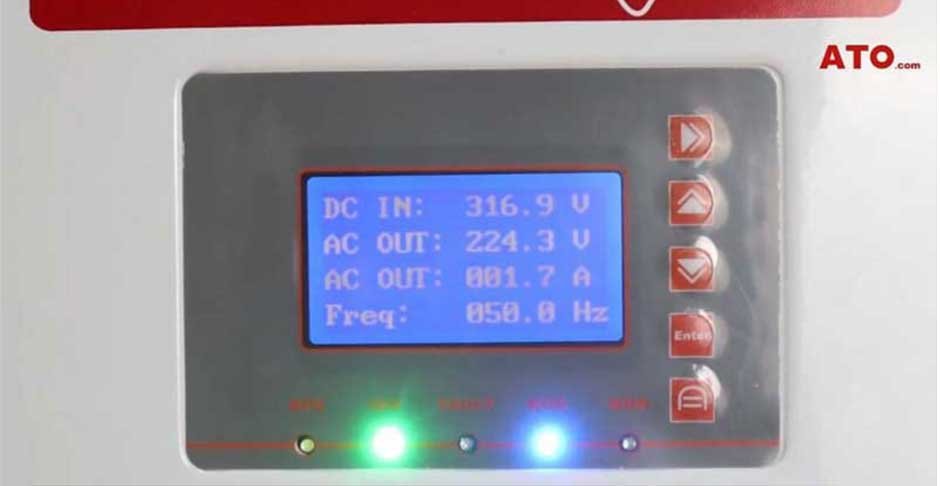

Before full operation, conduct a test run to verify voltage balance, correct wiring, and smooth operation of the machinery. Monitor for any unusual sounds or behavior, and make adjustments as needed.
Use Cases of Single Phase to 3 Phase Converters
The flexibility and convenience of single phase to 3 phase converters make them valuable in various fields. Below are some common applications:
Manufacturing and Workshops
Many manufacturing machines, such as CNC machines, lathes, and mills, require three-phase power for optimal performance. In areas where only single-phase service is available, converters enable these machines to operate without the need for expensive infrastructure upgrades.
Agriculture and Farming
Farms often use three-phase equipment like irrigation pumps, grain dryers, and conveyors. Since rural areas typically have limited electrical service, single phase to 3 phase converters offer an effective solution for powering heavy-duty agricultural machinery.
HVAC and Refrigeration
Large air conditioning systems, compressors, and refrigeration units often run on three-phase power. Converters make it possible for small businesses and remote facilities to operate these systems efficiently without upgrading their power supply.
Woodworking and Metalworking
In wood and metal shops, equipment like table saws, planers, and welding machines benefit from the stable power supply provided by three-phase systems. A single phase to 3 phase converter allows hobbyists and small shop owners to use professional-grade tools at home or in smaller facilities.
Renewable Energy Systems
Solar and wind systems in remote locations may only have access to single-phase power. Converters enable the use of three-phase inverters and storage systems, enhancing energy distribution and load balancing.
Commercial Kitchens and Bakeries
Industrial mixers, ovens, and refrigeration systems in commercial kitchens often require three-phase power. Using a converter allows restaurants and bakeries in older buildings or single-phase locations to expand operations without overhauling their electrical systems.
Benefits of Using Single Phase to 3 Phase Converters
There are several compelling advantages to using a single phase to 3 phase converter:
- Cost-Effective: Installing a converter is significantly cheaper than upgrading to a three-phase electrical service.
- Versatility: Converters can support a wide variety of equipment and are scalable for multiple machines.
- Convenience: They allow equipment to operate in areas where three-phase power is not available.
- Improved Performance: Equipment often runs more efficiently and smoothly with balanced three-phase power.
- Energy Efficiency: Digital converters, in particular, optimize energy usage and reduce waste.
Challenges and Considerations
Despite their many benefits, single phase to 3 phase converters also come with certain challenges:
- Initial Investment: Although more affordable than service upgrades, some converters, especially digital models, can be expensive.
- Technical Expertise: Proper installation and maintenance require a certain level of electrical knowledge.
- Load Compatibility: Not all converters can handle highly variable or sensitive loads. It’s crucial to match the converter to the application.
- Space Requirements: Rotary converters in particular require more physical space and generate more noise than other types.
Maintenance and Troubleshooting Tips
Proper maintenance of a single phase to 3 phase converter can prolong its lifespan and ensure reliable performance:
- Regular Inspections: Check for signs of overheating, wear, or vibration.
- Clean Environment: Keep the converter free from dust and debris, especially in workshops and agricultural settings.
- Voltage Monitoring: Use a multimeter to periodically check for balanced voltage across all phases.
- Cooling Systems: Ensure fans and ventilation systems are operational and clean.
- Professional Servicing: For complex issues or digital converters, consider professional diagnostics and repairs.
Conclusion
A single phase to 3 phase converter is an invaluable tool for businesses and individuals who need to operate three-phase equipment in single-phase environments. Whether you’re a small business owner, farmer, or workshop operator, understanding the types, installation processes, and practical applications of these converters can help you make informed decisions and maximize the efficiency of your operations.
By selecting the right type of converter and ensuring proper installation and maintenance, you can achieve near-industrial performance without the high costs of utility upgrades. As technology continues to evolve, modern converters are becoming more efficient, compact, and user-friendly, making them an essential component in today’s industrial and commercial landscape.
